BRIGHT BEER TANKS SERVING TANKS
Description

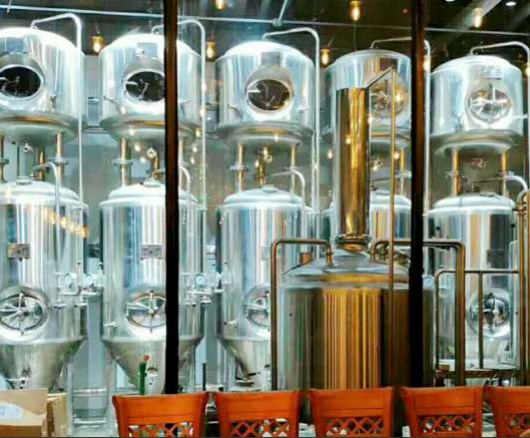

Bright beer tanks,also called brite tank, serve to mature, clarify, and carbonate the beer after fermentation. They are key components in the production of beer which are the final stop in the brewing process after leaving the brewhouse and fermenters. They can also be used for both the storage of finished beer for later canning, bottling, and kegging and as serving vessels allowing unpackaged beer to be poured and served directly from the brigt beer tank.
Volume:100L-35000L 1BBL-300BBL
| Material | Interior:Stainless steel 304,thickness 3.0mm |
| Exterior:Stainless steel304,thickness 2.0mm | |
| Insulation | Polyurethane,Thickness:1.5mm |
| Glycol Jacket | Dimpled plate on cone and side |
| Surface | Surface brushed;Polish treatment |
| Polish | 0.4μm |
| Controlling | Individually temperature controlled by PLC |
| Cleaning | CIP spray ball in the center of the inside tank |
| Cooling | Dimple plate or glycol cooling jacket around tank |
| Manway | Side manway |
| Temperature | Platinum resistance thermometer |
| Welding | Perfect TIG welding;Ra<=0.4μm |
| Pressure | Automatic control electric connected pressure gauge |
| Tank pressure | Design pressure 0.3MPa;Working pressure 0.2Mpa |
| Optional Part | Top hop additional port /CO2 stone |
