Classification:

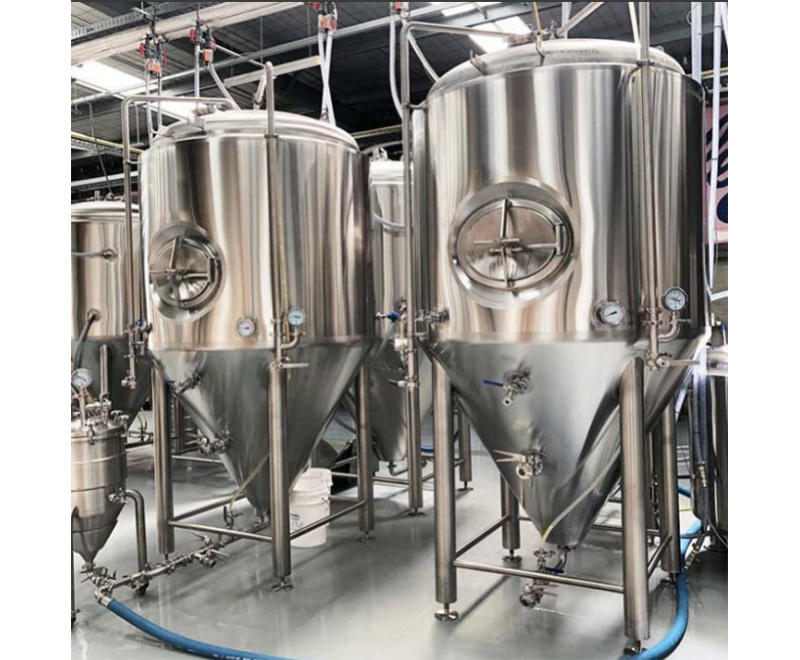

FERMENTATION TANKS UNITANKS
Description
The capacity we can do:
100L-35000L 1BBL-300BBL
| Material | Interior:Stainless steel 304,thickness 3.0mm |
| Exterior:Stainless steel 304,thickness 2.0mm | |
| Insulation | Polyurethane,Thickness:1.5mm |
| Glycol Jacket | Dimpled plate on cone and side |
| Surface | Surface brushed;Polish treatment |
| Polish | 0.4μm |
| Controlling | Individually temperature controlled by PLC |
| Cleaning | CIP spray ball in the center of the inside tank |
| Bottom cone | 60-90 degree |
| Cooling | Dimple plate or glycol cooling jacket around tank |
| Manway | Top manway or Side manway according to the tank size |
| Temperature Measurement |
Platinum resistance &Direct reading thermometer |
| Display temperature from intelligent data meter | |
| Welding | Perfect TIG welding;Ra<=0.4μm |
| Pressure | Automatic control electric connected pressure gauge |
| Tank pressure | Design pressure 0.3MPa;Working pressure 0.2Mpa |
| Optional Part | Top hop additional port/CO2 stone |
